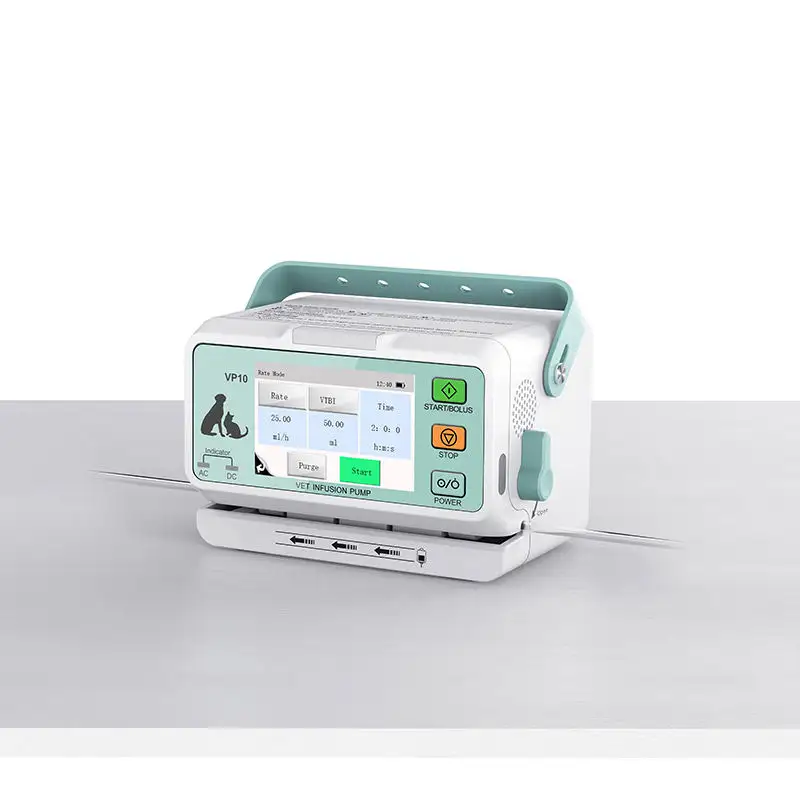

Animal Medical Equipment Veterinary Portable Electronic Infusion
Pump Syringe Infusion Pump
Bolus rate: 0.1~1200ml/h, Automatic/Manual bolus available.
Anti-bolus: Automatically reduce
the tube pressure when the tube is blocked. Bubble size: Adjustable
50/100/250/500/800 μl.
Ultrasonic detection. Occlusion pressure detection: Adjustable Low
/Medium /High. Down
Pressure detection. History Record: 2000 above. Night mode: setting
and adjustable.
Temperature:-22°C-55*C,Relative humidity:10% 95%,Atmospheric
pressure: 40~ 120Kpa.
Alarm: Air in Line / Downstream Occlusion/ No Battery / VTBI
Completed/ KVO Finished/
System Error / No Infusion Tube / Standby Time Expired / Reminder /
Low Battery /No Battery
Inserted / Time Near End / No AC Power. Select Mode :Rate Mode. IV
Set: 2 built-in brand for
choice, 4 user defined.
Size | L165 X W103 X H100mm |
Weight | 1.3kg |
Power | 100~ 240V |
External DC Power | 12V~15V |
Battery | 2600mAh, working 10 hours above in 25ml/h speed.Double CPU.
IP34warterproof/ dustproof/shockproof |
Flow Rate range | 0.1~2000.00ml/h, increment 0.01ml/h |
VTBI | 0.1-99999ml |
Time | 1s-99h59min |
KVO | 0.1~5.0ml/h, increment 0.1ml/h |
Accuracy | ±5% (use the IV set calibrated) |
Purge | 0.1-2000ml/h |
IV sets | Dia3-5mm or setting |
Our Advantages
1. 30 years of focus on medical euipment manufacturing.
2. Verified by ISO / CE certification.
3. OEM/ODM services be provided.
4. Excellent after-sales service
5. Fast Shipping: we are a direct manufacturer and have some
products in stock,we will arrange delivery
within 7-15 working day. (Please confirm with us before order)
6. Shipment: support door to door express service.
7. Logo: Support all kinds of logo customization:Please contact me
for OEM customization.
Our Service
1. Help customer analyze product project and provide solution.
2. Provide shipping/delivery information checking service.
3.18 months warranty, all life maintain promise.
4.24 hours online service.
FAQ
Q: Are you a manufacturer or a trading company ?
A: We're professional manufacturer of medical equipment.
Q: Are your products conforming to our standards ?
A: Yes, our products can pass the testings as you require, e.g.:
CE,ISO9001,ISO13485
Q: How do you control the quality ?
A: We have perfect QC system , professional product engineers and
continuous improvement system.
Q: What’s the product warranty?
A: We offer 18 months guarantee.
