CE High Efficiency Ob Gyn Medical Devices GMD-S600 Vaginal Infections Analyzer

Ask Lasest Price
Brand Name :	DIRUI
Model Number :	GMD-S600
Certification :	ISO13485,CE
Price :	To be negotiated
Payment Terms :	L/C, T/T
Supply Ability :	50 Set/Sets per Month
Delivery Time :	7-15 working days

Add to Cart

Product Details
Company Profile

CE High Efficiency Ob Gyn Medical Devices GMD-S600 Vaginal Infections Analyzer

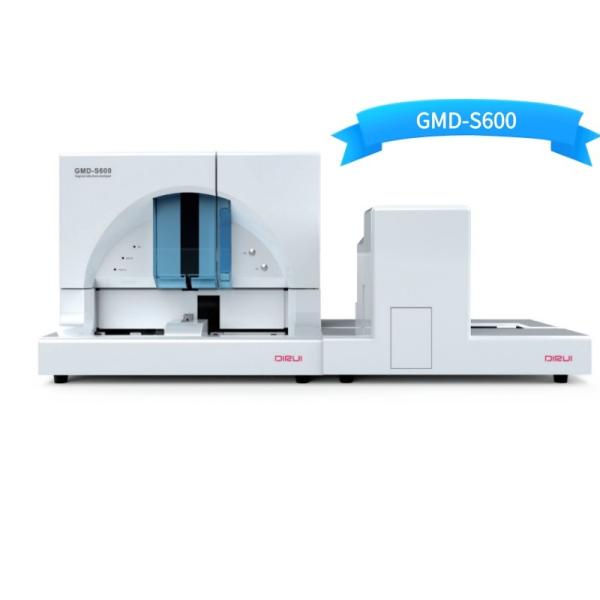

DIRUI High Efficiency GMD-S600 Vaginal Infections Analyzer

The GMD-S600 Vaginal Infections Analyzer inherits classic and reliable technology from DIRUI urinalysis

products with upgraded hardware and software to make pathogens in vaginal secretions visible and

reviewable to doctors.With the combined resluts of microcopy and chemical strips,the analyzer can give

parameters indicating most common vaginitis,BV(baterial vaginitis),TV (trichomonas vaginitis), FV (fungus

vaginitis) and also the mixed infections.

Product Features:

Constant througput:60 samples/hour

Comprehensive clinical information (8 microcopy parameters+9 chemical parameters)

Systematic reagents,strips,QC and calibrators

Sediment testing:	method Flow type image technology
Sediment analysis items:	RBC, WBC, squamous epithelial, clue cell, mould, trichomonad, lactobacillus and miscellaneous bacteria
Chemistry analysis items:	Neuraminidase (SNa), leucocyte esterase (LE), hydrogen peroxide (H2O2),β-glucuronidase (GUS) (optional), n-acetyl hexosaminidase (NAG) (optional),proline aminopeptidase (PIP) (optional), lactic acid (LA) (optional), oxidase (OX)(optional) and pH (optional)
Test speed:Sediment analysis mode:	60 samples/ hour Chemistry analysis mode: 60 samples/ hour Combined sediment+chemistry analysis mode: 60 samples/ hour
Sample type :	Vaginal secretions
Dyeing function:	If automatic dyeing is selected, the Analyzer will dye the sediment of RBC, WBC,squamous epithelial, clue cell and trichomonad in samples automatically.
temperature	Automatic temperature control range of chemistry testing area: 37℃±2℃; Automatic temperature control range of sediment dyeing cell: 37℃±1℃.
Volume of samples to be tested:	50 samples, an appropriate cover opening module is selected, the sample can open the cover automatically 270 samples, appropriate pre-storage tray module and reclaiming tray module are selected
Maximum capacity of strip bin:	200 strips
Maximum capacity of waste strip bin:	400 strips
Emergency treatment function:	Special position for emergency
Sample bar code identification:	A built-in bar code reader, automatic scanning of sample bar code; An external bar code reader, manual scanning of bar code (optional).
Light source:	Full spectrum of visible light
Camera type	Color camera
Port :	Data communication interface: bidirectional RS-232 communication interface LIS interface; internet access LIS and serial port LIS
Connection with LIS system:	Both-way communication with LIS system is supported
Test results storage:	capacity ≥100,000 data
Weight:	Host: 86kg When the host is connected with the cover opening module: 100kg When the host is connected with the cover opening module, pre-storage tray and reclaiming tray and reclaiming bridge module: 132kg
cover opening module:	Dimensions (L×W×H): Host: 688mm×779mm×584mm When the host is connected with the cover opening module: 1177mm×779mm×584mm When the host is connected with the cover opening module, pre-storage tray and reclaiming tray and reclaiming bridge module: 2055mm×897mm×584mm
Power consumption:	Host: 390VA When the host is connected with the cover opening module: 430VA When the host is connected with the cover opening module, pre-storage tray and reclaiming tray and reclaiming bridge module: 480VA Computer: 300VA

Our Advantages
1. 30 years of focus on medical euipment manufacturing.
2. Verified by ISO / CE certification.
3. OEM/ODM services be provided.
4. Excellent after-sales service

5. Fast Shipping: we are a direct manufacturer and have some products in stock,we will arrange delivery

within 7-15 working day. (Please confirm with us before order)
6. Shipment: support door to door express service.
7. Logo: Support all kinds of logo customization:Please contact me for OEM customization.

Our Service

1. Help customer analyze product project and provide solution.
2. Provide shipping/delivery information checking service.

3.18 months warranty, all life maintain promise.
4.24 hours online service.

FAQ

Q: Are you a manufacturer or a trading company ?
A: We're professional manufacturer of medical equipment.

Q: Are your products conforming to our standards ?
A: Yes, our products can pass the testings as you require, e.g.: CE,ISO9001,ISO13485

Q: How do you control the quality ?
A: We have perfect QC system , professional product engineers and continuous improvement system.

Q: What’s the product warranty?
A: We offer 18 months guarantee.
