GMD-S600 Gynecology Medical Devices CE Auto Vaginal Infections Analyzer

Ask Lasest Price
Brand Name :	DIRUI
Model Number :	GMD-S600
Certification :	ISO13485,CE
Price :	To be negotiated
Payment Terms :	L/C, T/T
Supply Ability :	50 Set/Sets per Month
Delivery Time :	7-15 working days

Add to Cart

Product Details
Company Profile

GMD-S600 Gynecology Medical Devices CE Auto Vaginal Infections Analyzer

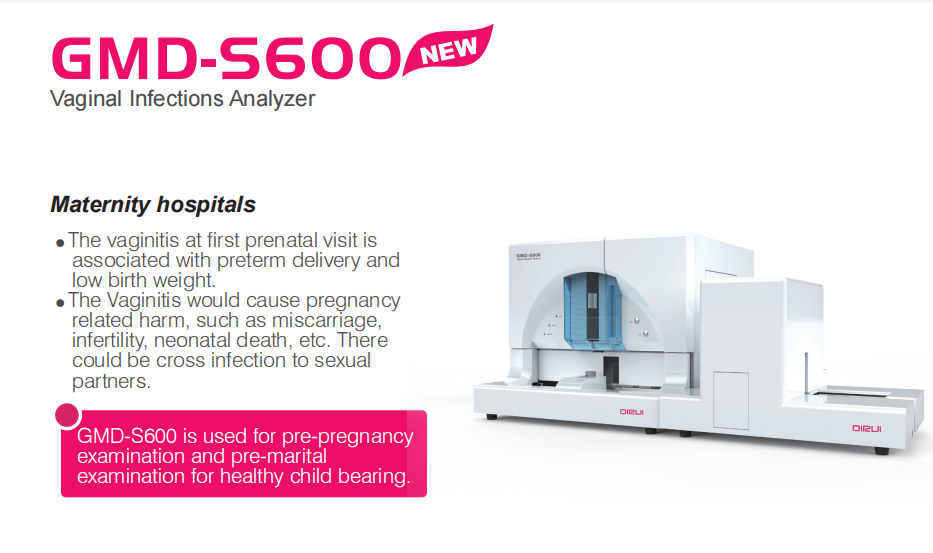

Vaginal Infections Analyzer GMD-S600 Auto Vaginal Infections Analyzer

Maternity hospitals

● The vaginitis at first prenatal visit is associated with preterm delivery andlow birth weight.

● The Vaginitis would cause pregnancy related harm, such as miscarriage,infertility, neonatal death, etc. There

could be cross infection to your partners.

● GMD-S600 is used for pre-pregnancy examination and pre-marital examination for healthy child bearing.

Central lab or Physical Examination Dept

● Repeated vaginitis would destroy the immune system and cause complications of cervicitis, pelvic

inflammation, annexitis, urethritis etc.

Sediment testing:	method Flow type image technology

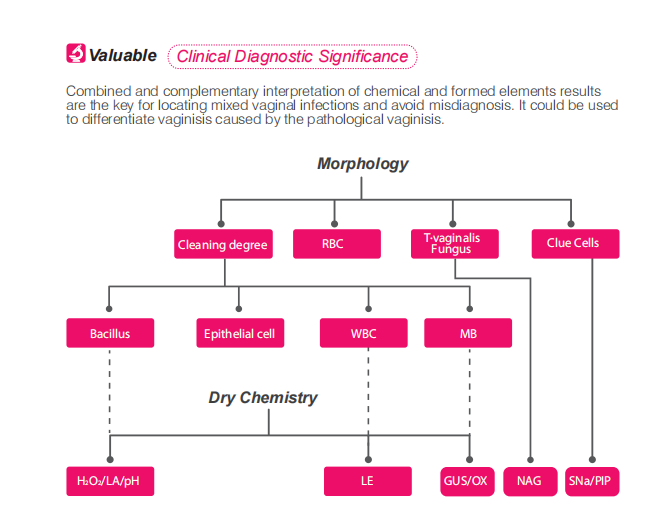

Sediment analysis items:	RBC, WBC, squamous epithelial, clue cell, mould, trichomonad, lactobacillus and miscellaneous bacteria
Chemistry analysis items:	Neuraminidase (SNa), leucocyte esterase (LE), hydrogen peroxide (H2O2),β-glucuronidase (GUS) (optional), n-acetyl hexosaminidase (NAG) (optional),proline aminopeptidase (PIP) (optional), lactic acid (LA) (optional), oxidase (OX)(optional) and pH (optional)
Test speed:Sediment analysis mode:	60 samples/ hour Chemistry analysis mode: 60 samples/ hour Combined sediment+chemistry analysis mode: 60 samples/ hour
Sample type :	Vaginal secretions
Dyeing function:	If automatic dyeing is selected, the Analyzer will dye the sediment of RBC, WBC,squamous epithelial, clue cell and trichomonad in samples automatically.
temperature	Automatic temperature control range of chemistry testing area: 37℃±2℃; Automatic temperature control range of sediment dyeing cell: 37℃±1℃.
Volume of samples to be tested:	50 samples, an appropriate cover opening module is selected, the sample can open the cover automatically 270 samples, appropriate pre-storage tray module and reclaiming tray module are selected
Maximum capacity of strip bin:	200 strips
Maximum capacity of waste strip bin:	400 strips
Emergency treatment function:	Special position for emergency
Sample bar code identification:	A built-in bar code reader, automatic scanning of sample bar code; An external bar code reader, manual scanning of bar code (optional).
Light source:	Full spectrum of visible light
Camera type	Color camera
Port :	Data communication interface: bidirectional RS-232 communication interface LIS interface; internet access LIS and serial port LIS
Connection with LIS system:	Both-way communication with LIS system is supported
Test results storage:	capacity ≥100,000 data
Weight:	Host: 86kg When the host is connected with the cover opening module: 100kg When the host is connected with the cover opening module, pre-storage tray and reclaiming tray and reclaiming bridge module: 132kg
cover opening module:	Dimensions (L×W×H): Host: 688mm×779mm×584mm When the host is connected with the cover opening module: 1177mm×779mm×584mm When the host is connected with the cover opening module, pre-storage tray and reclaiming tray and reclaiming bridge module: 2055mm×897mm×584mm
Power consumption:	Host: 390VA When the host is connected with the cover opening module: 430VA When the host is connected with the cover opening module, pre-storage tray and reclaiming tray and reclaiming bridge module: 480VA Computer: 300VA

Our Service

1. Help customer analyze product project and provide solution.
2. Provide shipping/delivery information checking service.

3.18 months warranty, all life maintain promise.
4.24 hours online service.

FAQ

Q: Are you a manufacturer or a trading company ?
A: We're professional manufacturer of medical equipment.

Q: Are your products conforming to our standards ?
A: Yes, our products can pass the testings as you require, e.g.: CE,ISO9001,ISO13485

Q: How do you control the quality ?
A: We have perfect QC system , professional product engineers and continuous improvement system.

Q: What’s the product warranty?
A: We offer 18 months guarantee.
